Water Level Controller – Types, Uses & Price Guide (Kolkata 2026)

Overflowing tanks and dry-running motors are two of the most common (and avoidable) problems in homes and buildings across Kolkata and Howrah. A water level controller solves both by automatically managing your pump based on tank water level. This guide covers every major type available today, how each works, and indicative pricing.

What Is a Water Level Controller?

A water level controller is a device that monitors the water level in a tank and automatically switches the motor/pump ON or OFF at set levels — stopping overflow when the tank is full and preventing the motor from running dry when the source is empty.

Why You Need One

• Stops water overflow and wastage from forgotten tanks
• Protects the motor from dry-run burnout when the source runs low
• Removes the need to manually check tank levels every day
• Reduces electricity wastage from pumps left running unnecessarily
• Useful for both underground sump-to-overhead tank setups and borewell systems

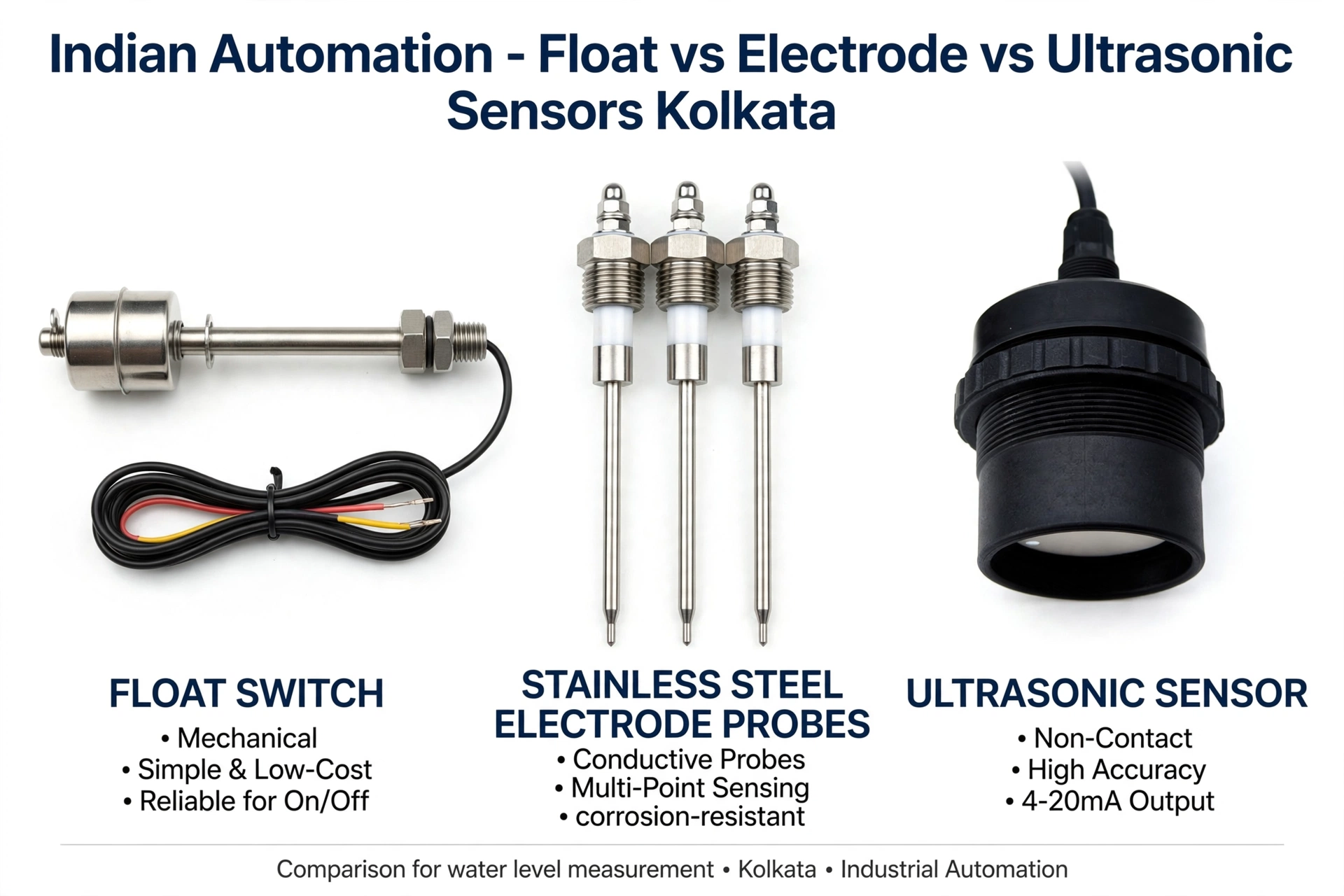

Types of Water Level Controllers

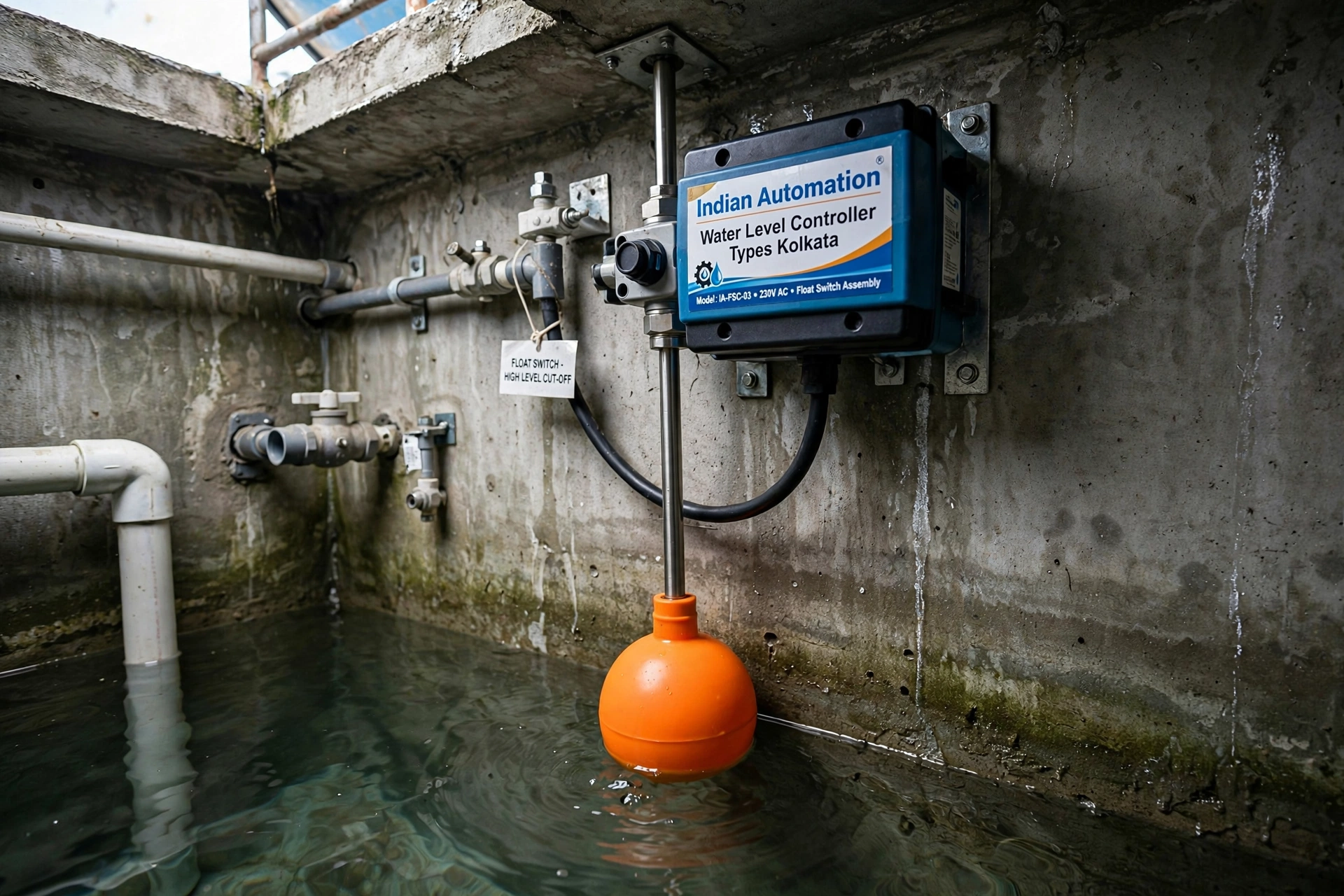

1. Float Switch Controller

The most common and affordable type — a floating switch inside the tank rises and falls with the water level, mechanically triggering the motor on/off at set high and low points. Simple, reliable, and easy to install, though the float and moving parts can wear out over time and need occasional maintenance.

Best for: Homes, small buildings, budget installations

2. Electrode / Probe-Type Controller

Uses metal electrode rods of different lengths placed inside the tank — water conducts electricity between the electrodes to signal the control panel about water level. No moving/floating parts, making it more durable, but requires periodic cleaning of electrodes to prevent mineral buildup affecting accuracy.

Best for: Overhead tanks, buildings with harder water where scaling is manageable with maintenance

3. Ultrasonic Water Level Controller

Uses ultrasonic sound waves to measure the exact water level without any contact with the water — highly accurate and gives a real-time level reading, not just an on/off signal. Higher cost but very low maintenance since there are no submerged parts.

Best for: Commercial buildings, industrial tanks, precise-level monitoring needs

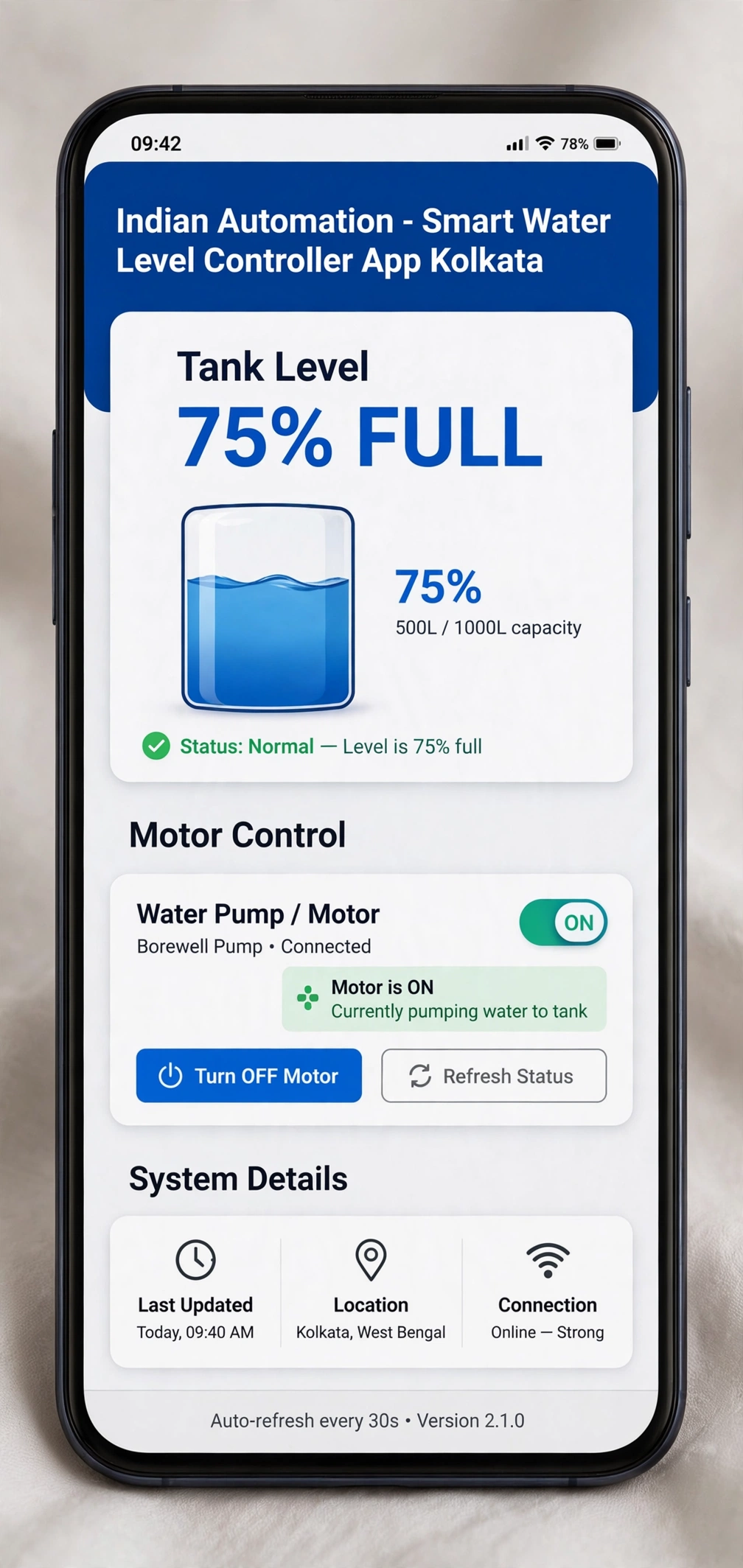

4. Wireless / Smart Water Level Controller

Connects sensors wirelessly to a control unit or mobile app, allowing you to check tank levels and control the motor remotely from your phone — often combined with dry-run protection and overflow alerts.

Best for: Homes/buildings wanting app-based control and remote monitoring, multi-tank setups

5. Fully Automatic Controller with Dry-Run Protection

A more advanced version of float or electrode controllers that adds a dedicated dry-run protection circuit — automatically stopping the motor if the water source (borewell/sump) runs empty, protecting the motor even if someone bypasses the main control.

Best for: Borewell-fed systems, buildings prone to source water shortage

Single Tank vs Dual Tank (Sump + Overhead) Controllers

• Single tank controllers manage water level in just one tank (usually the overhead tank)
• Dual tank controllers monitor both the underground sump/source and the overhead tank together — stopping the pump if either the source runs dry or the overhead tank is full, offering more complete protection

Indicative Water Level Controller Price Range

Prices vary by type, brand, and tank configuration (single vs dual tank). Contact us for a site-specific quote.

*Approximate ranges depending on brand, tank distance from panel, and motor HP for the starter/relay involved. Contact us for exact pricing after a quick site check.

How to Choose the Right Controller for Your Property

• Simple home use, tight budget → Float switch controller
• Want durability with minimal moving parts → Electrode/probe controller
• Borewell or frequent dry source issue → Controller with dry-run protection
• Large commercial tank needing exact level readings → Ultrasonic controller
• Want remote monitoring/control from your phone → Wireless/smart controller
• Managing both sump and overhead tank → Dual tank controller setup

Installation Tips

• Keep the control panel in a dry, ventilated, easily accessible location near the motor
• For float switches, ensure enough tank space for free float movement without obstruction
• Electrode rods should be positioned to avoid contact with tank walls or debris
• Always pair with a properly rated MCB/starter for the motor's HP to ensure safe operation

Our Water Level Controller Installation Service

1. Site visit to check tank type, motor HP, and distance between sump/overhead tank
2. Recommendation of the right controller type for your setup and budget
3. Professional installation with proper wiring and starter integration
4. Testing at both high and low water levels to confirm accurate cut-off
5. After-installation support for maintenance or troubleshooting

Related Products & Services

• Water Pump Automation & Control Panel Guide
• Home Automation System Price in India
• MCB & Distribution Board Price Guide
• Smart Energy Meter & IoT Monitoring
• Water Level Controller Products

Frequently Asked Questions

Which water level controller is best for a home with a borewell?

For borewell-fed systems, an electrode or float-type controller with dry-run protection is generally recommended, since it protects the motor if the borewell water level drops too low.

Can a water level controller work with an existing motor?

Yes, in most cases a controller can be added to your existing motor and starter setup without needing to replace the pump itself.

Do electrode-type controllers need regular maintenance?

Yes, electrode rods should be checked and cleaned periodically to prevent scaling or debris from affecting the water level detection accuracy, especially in areas with harder water.

Is a wireless water level controller reliable during Wi-Fi outages?

Most wireless controllers continue basic automatic on/off operation even without an internet connection — the app-based remote monitoring feature is what requires connectivity, not the core automation function.
